Overview

Clopay® Avante® garage doors are constructed with aluminum and glass panels, lending a clean and modern aesthetic to any home or building. Avante® doors come with a five-year warranty on the finish and a three-year warranty on hardware. Avante AX/AXU is characterized by the following features:



• Durable, low-maintenance 2-1/8″ commercial grade aluminum frame with many glazing options.
• Frame and solid aluminum panels available in choice of anodized and powder-coated finishes.
• Polyurethane-insulated rails and stiles (AXU only)
• Tempered full-view glass, acrylic or solid aluminum panel options. Insulated glass garage door panels are available for increased energy efficiency.
• Choose from our selection of aluminum garage door panel colors: White, Bronze, Brown, Clear Anodized, Bronze Anodized, Black Anodized.
• ColorBlast custom colors available.
• Color-matched aluminum grip handle.
• WINDCODE® product available. (Click for details)



Learn More in Our Buying Guide

• Contemporary Garage Doors
• Glass & Aluminum Garage Doors



LIFTMASTER^® ELITE SERIES™
Clopay Recommends LiftMaster® Elite Series® openers for these garage doors. These openers have a range of features that truly make lives easier.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

• California SB 1013
• Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
• Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations

Design Options

Customize your Clopay® Avante® garage doors with your choice of aluminum frame and panel combination. Control the privacy and amount of light to let into the room based on the type of panels you select, which come in glass, acrylic, polygal or solid aluminum finish. The aluminum frame is available in several standard colors: clear aluminum (anodized), standard white, bronze (painted), chocolate (painted), bronze (anodized), black (anodized), or dark bronze (anodized). If you need a very specific frame color, our ColorBlast® program allows you to select any color you want or pick from hundreds of Sherwin-Williams® color options.

CLEAR GLASS

GRAY TINTED GLASS

BRONZE TINTED GLASS

MIRRORED GLASS

OBSCURE GLASS

WHITE LAMINATE GLASS

FROSTED (SATIN ETCHED) GLASS OR FROSTED ACRYLIC

CLEAR ACRYLIC

GRAY ACRYLIC

WHITE ACRYLIC

CLEAR POLYGAL

BRONZE POLYGAL

CLEAR ANODIZED (ALUMINUM PANEL)

*Satin etched is used in the AX/AXU models.

↑ Back To Top

Color Options

CLEAR ALUMINUM (ANODIZED)

STANDARD WHITE

BRONZE (PAINTED)

CHOCOLATE (PAINTED)

BRONZE (ANODIZED)

BLACK (ANODIZED)

DARK BRONZE (ANODIZED)

Due to the anodizing process, color variation may occur. The use of “Bronze (Painted)” is recommended for a more consistent bronze finish color. Custom colors available.

↑ Back To Top

Hardware Options

HANDLES
Optional Aluminum Grip Handle

↑ Back To Top

Construction

Clopay® Avante® garage doors are manufactured in the United States by expert craftspeople. These glass and aluminum doors can be built with tempered glass (optional insulated glass), acrylic, polygal or solid aluminum frame panels. Also available is a polyurethane-insulated frame option with R-value of 3.8 (with clear insulated glass). The replaceable vinyl bottom weather seal in a rust-free aluminum retainer protects your garage (or any other room where your door is installed) from the outside elements.

MODEL AX/AXU

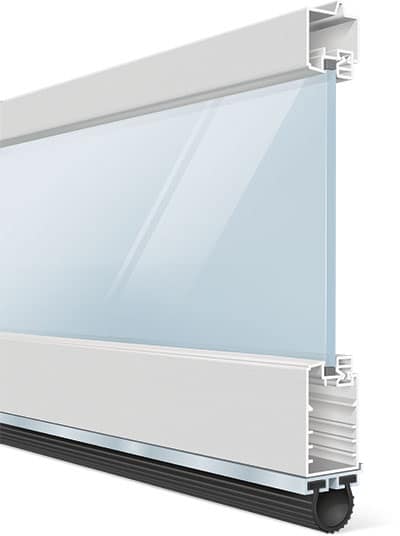

Made of 2-1/8” durable commercial grade aluminum, making it virtually maintenance-free and long-lasting.

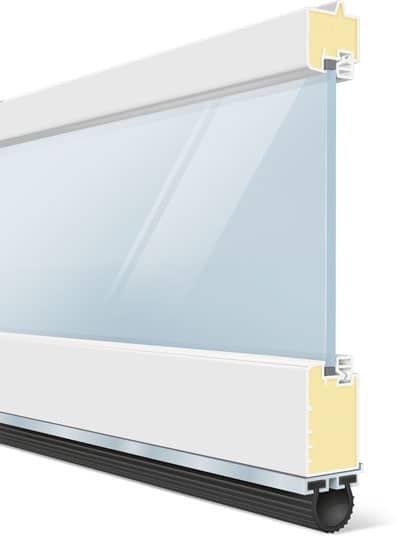

Model AXU made of 2-1/8″ durable commercial grade aluminum with polyurethane insulation with an R-value of 3.8 (with clear insulated glass)

Integral section joint seal for further reduction of air and water infiltration.

Smooth flat frame edge design for a more contemporary look.

Reinforcing fin included on doors wider than 14’. Standard doors 12’ and under do not use built-in reinforcing fin. Usage on widths 12’2” to 14’ depend upon glass weight. WINDCODE® doors may vary.

↑ Back To Top

Brochures

Model AX Product Brochure
pdf

Products available through Independent Dealers
pdf

↑ Back To Top

Installation and Care

Handle Installation for Modern Series
pdf

Avante Collection Care and Maintenance Manual
pdf

Avante Installation & Maintenance Manual
pdf

1 Year Installation Warranty
pdf

↑ Back To Top

Videos

VIDEOS

Clopay® AVANTE® Collection garage doors make a stunning architectural focal point in houses and buildings, and have been featured in key
home remodeling projects. Check out the videos below for an overview of the Avante® Collection, and a peek at the projects that feature this
product.
