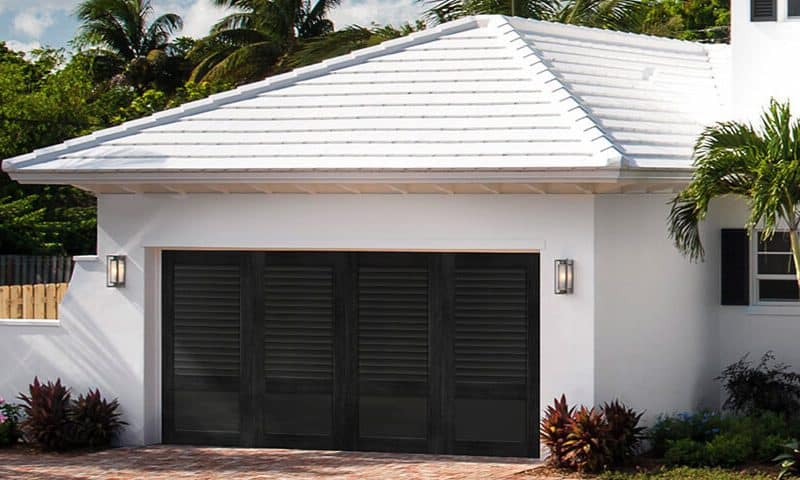

Canyon Ridge® Louver
August 31, 2022
Coachman®
August 31, 2022
Show all

Canyon Ridge® Carriage House (4-Layer)

Faux Wood-Look Carriage House Garage Doors

Insulated carriage house garage doors with faux wood-look overlays on a steel base

Clopay’s Canyon Ridge® Carriage House 4-Layer garage doors add character and charm to your home. Enjoy the authentic look of swing-out coach house doors paired with the modern-day functionality of upward operation. Not only beautiful, these doors provide quiet operation and energy efficiency for years to come.

Overview

Clopay Canyon Ridge® Carriage House (4-Layer) garage doors bring together the carriage house designs of the past and today’s technology, functionality and energy efficiency. These doors are constructed with steel for strength and durability, and molded composite overlays for beauty and realism. These doors feature:

  • 4-layer construction: steel + insulation + steel + composite overlay.
  • Faux wood-look composite overlay available in Clear Cypress for Ultra-Grain® color options and in Mahogany for solid colors.
  • Colors include: Ultra-Grain Walnut, Ultra-Grain Medium, Ultra-Grain Slate, Black, White, and Primed. (Additional Options)
  • 2″ Intellicore® polyurethane insulation with a thermal break. R-Value of 18.4.
  • WINDCODE® door reinforcement product available for high wind load applications. (Click for details)

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

  • California SB 1013
  • Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
  • New Jersey A-5583/S-3919 – Greenhouse Gas Bill






Design Options

Customize your Clopay® Canyon Ridge® Carriage House (5-Layer) garage door to make it your own. Designs, colors, textures and windows create the perfect look. If you are in search of more color options, our ColorBlast® program allows you to select from hundreds of Sherwin-Williams® color options or mix the perfect custom color.

canyon ridge ultra grain design11
SERIES 1
DESIGN 11
canyon ridge ultra grain design 12
SERIES 1
DESIGN 12
canyon ridge ultra grain design 13
SERIES 1
DESIGN 13
canyon ridge ultra grain design 21
SERIES 2
DESIGN 21
canyon ridge ultra grain design 22
SERIES 2
DESIGN 22
canyon ridge ultra grain design 23
SERIES 2
DESIGN 23
canyon ridge ultra grain design 31
SERIES 3
DESIGN 31
canyon ridge ultra grain design 32
SERIES 3
DESIGN 32
canyon ridge ultra grain design 33
SERIES 3
DESIGN 33
canyon ridge ultra grain design 34
SERIES 3
DESIGN 34
canyon ridge ultra grain design 35
SERIES 3
DESIGN 35
canyon ridge ultra grain design 36
SERIES 3
DESIGN 36
canyon ridge ultra grain design 37
SERIES 3
DESIGN 37
canyon ridge ultra grain design 38
SERIES 3
DESIGN 38

For more information regarding construction options per panel style, click here

↑ Back To Top


Top Sections

Solid Top Section - TOP11 - Canyon Ridge
SOLID TOP SECTIONS
TOP11
Solid Tope Section - TOP12 - Canyon Ridge
SOLID TOP SECTIONS
TOP12
Solid Top Section - Top13 - Canyon Ridge
SOLID TOP SECTIONS
TOP13
Solid Top Section - ARCH1
SOLID TOP SECTIONS
ARCH1
canyon ridge ultra grain REC11
WINDOW DESIGNS
REC11
canyon ridge ultra grain REC13
WINDOW DESIGNS
REC13
canyon ridge ultra grain REC14
WINDOW DESIGNS
REC14
canyon ridge ultra grain SQ23
WINDOW DESIGNS
SQ23
canyon ridge ultra grain SQ24
WINDOW DESIGNS
SQ24
arch 1 canyon ridge ultra grain
WINDOW DESIGNS
ARCH1
canyon ridge ultra grain arch3
WINDOW DESIGNS
ARCH3
canyon ridge ultra grain arch4
WINDOW DESIGNS
ARCH4
Canyon Ridge Ultra Grain ARCH13
WINDOW DESIGNS
ARCH13
Canyon Ridge Ultra Grain ARCH14
WINDOW DESIGNS
ARCH14
CrARC1ASolid-MF-MH-Dbl
DOUBLE TOP SECTIONS
ARC1A – SOLID (Double Door)
CrARC1AWindow-MF-MH-Dbl
DOUBLE TOP SECTIONS
ARC1A – WINDOW (Double Door)
CrARC3A-MF-MH-Dbl
DOUBLE TOP SECTIONS
ARC3A – WINDOWS (Double Door)
CrARC4A-MF-MH-Dbl
DOUBLE TOP SECTIONS
ARC4A – WINDOWS (Double Door)
Canyon Ridge Ultra Grain ARC13A
DOUBLE TOP SECTIONS
ARC13A – WINDOWS (DOUBLE DOOR)
Canyon Ridge Ultra-Grain ARC14A
DOUBLE TOP SECTIONS
ARC14A – WINDOWS (DOUBLE DOOR)

↑ Back To Top


Specialty Glass Options

seeded
SEEDED
rain
RAIN
forsted
FROSTED
obscure
OBSCURE

↑ Back To Top


Material Options

Composite Mahogany
COMPOSITE OVERLAY MATERIALS
Mahogany
UG Clear Cypress Solid Steel
STEEL BASE DOOR MATERIALS
Ultra-Grain® Finish Clear Cypress or Solid Color Steel
Composite Clear Cypress
COMPOSITE OVERLAY MATERIALS
Clear Cypress

↑ Back To Top


Color Options

Color-UG Cypress Medium
ULTRA-GRAIN® CYPRESS MEDIUM FINISH
Color-UG Cypress Walnut
ULTRA-GRAIN® CYPRESS WALNUT FINISH
Color-UG Cypress Slate
ULTRA-GRAIN® CYPRESS SLATE FINISH
Color-Black
BLACK FINISH
Color-White
WHITE FINISH
Color-Primed No Finish
PRIMED(NO FINISH)

Steel surfaces have woodgrain texture.

For more information regarding color availability, click here.

Two-tone option available. One color for the base layer (steel) and one color for the top layer (composite overlay).

Canyon Ridge 4-Layer

Custom color available through ColorBlast® program.

↑ Back To Top


Hardware Options

spade lift handles
HANDLES
SPADE LIFT HANDLES
(included)
SPEAR LIFT HANDLES
HANDLES
SPEAR LIFT HANDLES
colonial lift handles
HANDLES
COLONIAL LIFT HANDLES
decorative-lift-handles
HANDLES
DECORATIVE LIFT HANDLES
Decorative Ring Door Knocker
HANDLES
RING DOOR KNOCKER
ESCUTCHEON PLATE(S)
HANDLES
ESCUTCHEON PLATE(S)
twisted L handles with keys
HANDLES
TWISTED “L” HANDLES
spade strap hinge
HINGES
SPADE STRAP HINGE
spear strap hinge
HINGES
SPEAR STRAP HINGE
colonial strap hinge
HINGES
COLONIAL STRAP HINGE
Spade Step Plate
PLATES
SPADE STEP PLATE
Spear Step Plate
PLATES
SPEAR STEP PLATE
btnplate-colonialstep
PLATES
COLONIAL STEP PLATE

↑ Back To Top


Construction

Clopay® Canyon Ridge® Carriage House (4-Layer) garage doors are built with a strong base door and overlays. The faux wood-look composite overlays are low maintenance, durable and won’t rot, warp or crack.

canyon ridge limited edition construction cutaway
intellicore header
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency and durability. (Click for details)



  • Door sample shown in Medium Finish.
  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
  • High performance nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
  • Heavy-duty 14 gauge steel hinges and brackets for smooth and worry-free operation.
  • Window grilles are removable for easy cleaning.
  • Safe-T-Bracket® – Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
  • Rust-Prevention System – Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pretreatment and a baked on primer and top coat.
  • Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
